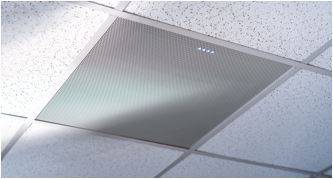

ClearOne BMA 360 ceiling tile mic


Model no: ClearOne BMA 360 ceiling tile mic

Availability: In Stock

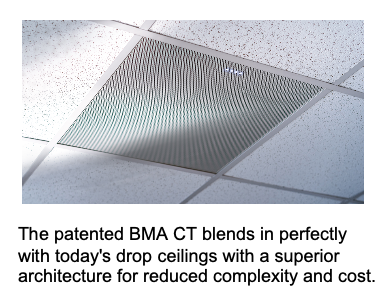

The BMA 360 is a patented ceiling tile beamforming mic array that blends in perfectly with today's False ceilings. Built-in acoustic echo cancellation, noise cancellation, and beam selection eliminate the need for per-beam processing in a DSP mixer - requiring fewer DSP mixer resources. BMA-360 has inbuilt 4 channel 15watt amplifier to drive upto 4nos speakers

Price on Request

CLEARONE BMA CT ceiling Tile microphone

Clearone BMA-360 ceiling tile microphone has built-in acoustic echo cancelllation, noise cancellation,

and beam selection eliminate the need for per-beam processing in a DSP mixer - requiring fewer

DSP resources.

FEATURES

Adaptive Steering technology for Beams - No need to adjust individual beems

BMA 360 tile mic has built-in 4x15Watt (8Ohm) power amplifier to drive loudspeakers

Daisy Chaining of upto 3 mics tiles via P-Link connectivity using CAT6 cable

Each Ceiling tile Mic array supports long distance P-Link mode with 200mtr distance between tiles.

SIngle workflow for configuration using Pro-Console software. No need to program separelty.

.

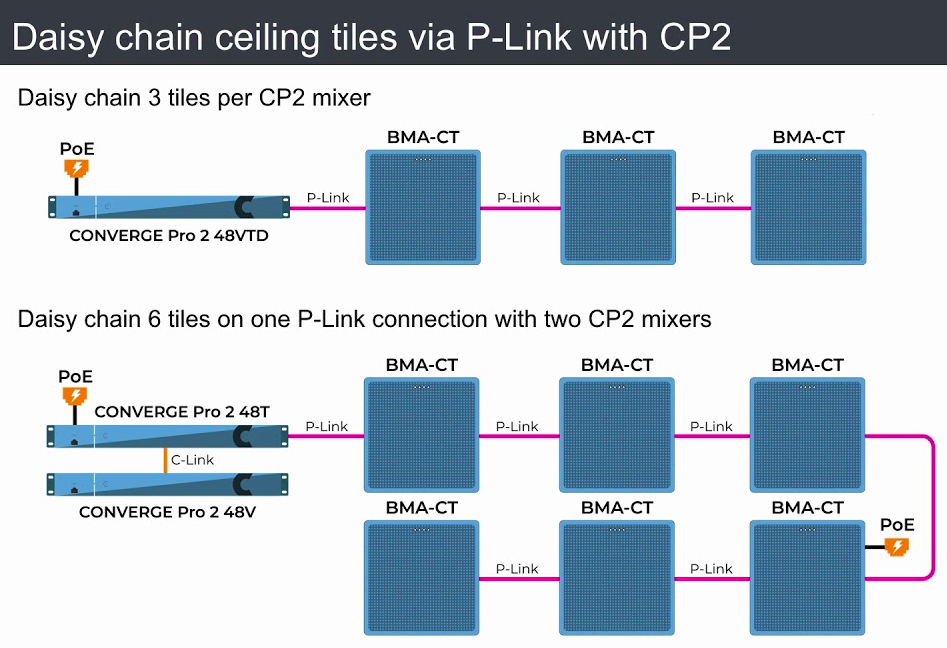

Clearone BMA 360 can be daisy chained via CAT-6 cable as shown below

clearone beamforming mics, clearone ceiling tile mic, clearone chat 50 dealers in india, clearone chat 150 dealers in India

ClearOne BMA 360 ceiling tile mic, Clearone ceiling tile mic, clearone dealers in INDIA, clearone dealers in DELHI / NCR, Clearone chat 150 dealers in Delhi, Clearone chat50 dealers in INDIA, ClearOne India, ClearOne BMA CT dealers in India, www.digitalpointindia.com| Clearone dealers in India | Clearone ceiling tile mic dealers in Delhi, Clearone ceiling tile mic dealers in Gurgaon, Clearone ceiling tile mic dealers in INDIA, Clearone ceiling tile mic prices in INDIA, Clearone ceiling tile mic dealers in Delhi, Sennheiser ceiling tile mic dealers in Gurgaon, Sennheiser ceiling tile mic dealers in INDIA, Sennheiser ceiling tile mic prices in INDIA, Clearone BMA360 dealers in INDIA

Specs subject to change without notice by manufacturers

SPECIFICATIONS

- 1 Channel In (uses P-Link channels or C-Link channels for speakers)

- Number of Beams : Two Patterns, either 5 or 6 beams

- Polar Pattern: Custom

- Frequency Responce : 150Hz - 16KHz, +/- 3dB

- Dynamic Range: 150Hz - 16KHz, >7-dB

- P-Link In and Out : Proprietary Network [ RJ-45 ports ]

  [ Cables: Cat5e or CAT 6 ]

AMPLIFIER OUTPUT

- 4 Channels

- 15W Max, 8 Ohm load

- Freq. Responce: 20Hz to 22KHz, @+10dBu, +/- 0.5dB

- THD + Noise: 20Hz - 22KHz @+10dBu, 1W, <0.2%

LED

- 4 Nos LED indicator on one end of Unit

   - Showns status for Mute / Un-Mute, Warning Indications

POWER SELECTION SWITCH

   - Slide Switch  P-Link/POE
